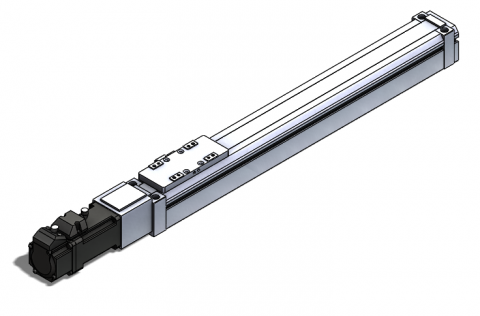

CLEAN Model:JES-C-045S
| Model | JES-C-045S |
|---|---|
| Motor | Ac Servo 100W 3,000rpm |
| Drive Mechanism | Ball Screw Ø12-C10(rolling) |
| LM Guide | No.24W 1Way 1Block |
| Repeatability | ±0.08mm |
- 2D 다운로드
-
3D 다운로드
본문
Detail view
Driving Specifications
| Ball Screw Lead | 5 | 10 | 20 | |
| Max Speed | 250mm/s/s | 500mm/s | 1000mm/s | |
| Payload(kg) | 수평 | 8 | 6 | 5 |
| 벽면 | 6 | 5 | 5 | |
| 수직 | 4 | 3 | - | |
※ 위 하중은 Overhang에 따라 변경될 수 있음
Stroke by Max Speed & Weight
| Stroke(mm) | 100 | 200 | 300 | 400 | 500 | 600 | |
| Max Speed | 10 | 500mm/s | |||||
| 20 | 1000mm/s | ||||||
| Weight(kg) | - | 3 | 3.5 | 4.1 | 4.6 | 5.1 | 5.6 |
